TV6-529-29-NG – Nitro Toyota 8″ V6 5.29 Rear R&P 29 SPL

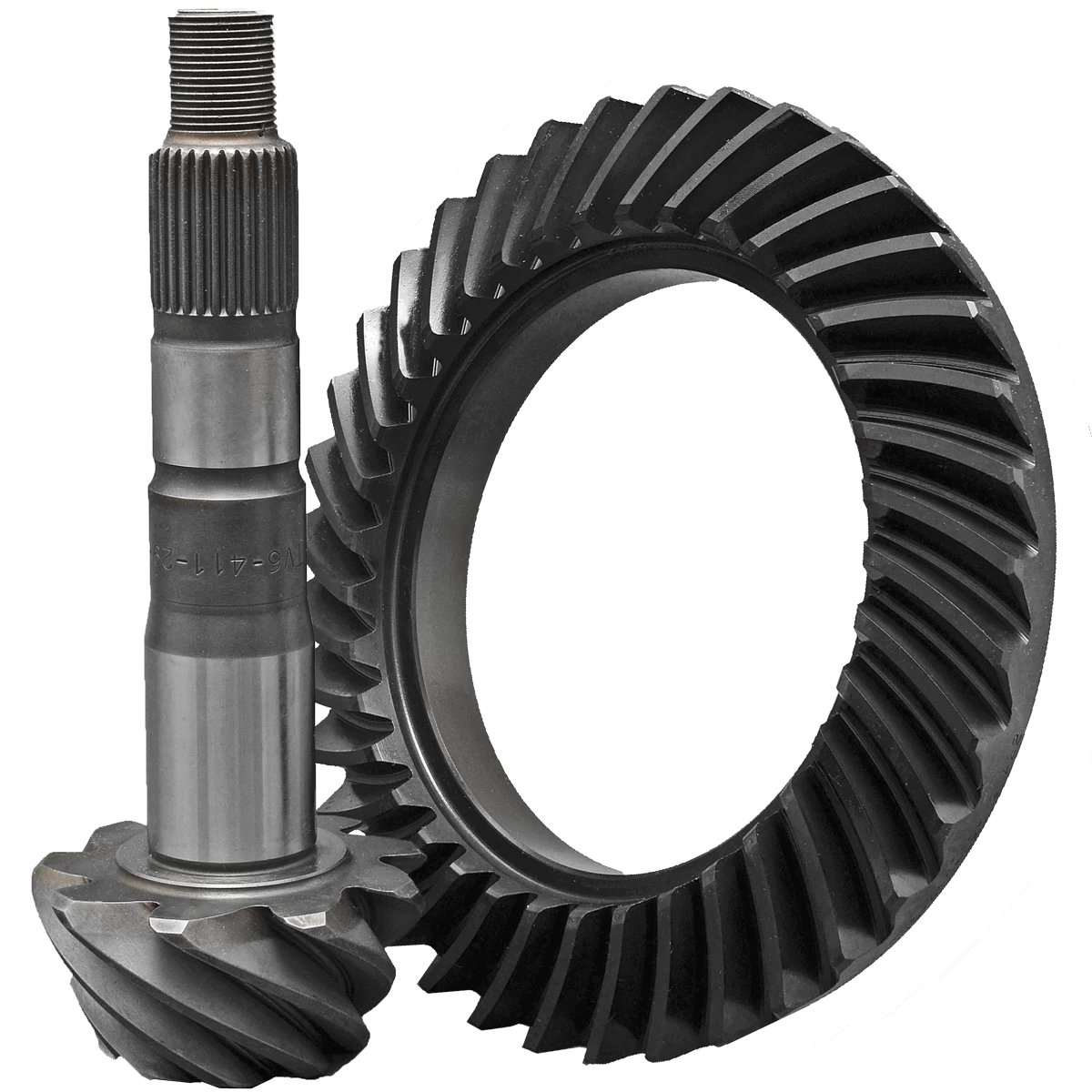

Toyota 8″ 5.29 Nitro Ring & Pinion

Toyota 8″ 4.56 Nitro Ring & Pinion

Tech Note

Refer to Fits tab for info on required yokes and Master Install Kits.

In 2003 Toyota switched the 8″ gear set from 27 to 29 spline pinions. Nitro ‘TV6’ 8″ gears were designed from the beginning with a 29 spline pinion. As a result Nitro is currently the only company offering factory correct pinion splines for 2003 & newer 8″ Fits. As an added benefit all 2002 & older Fits can now be upgraded to the superior 29 spline with our YOKTOYFITKIT-29 The FITKIT contains a new, 29 spline flange, a new pinion seal and a new pinion nut.

Nitro gears are manufactured from 8620 steel gear forgings in the same manufacturing facilities as GM, Dodge, Ford & Toyota. They are precision machined using computer controlled processes, heat treated, CNC triple-lapped and Rockwell tested for hardness. These extra steps ensure excellent fitment, ideal contact pattern and smooth, quiet operation.

TV6 gears will not work in South American built Dana 200mm 3rd members (these have side shims, not the typical adjuster nuts for carrier bearings. Call JT’s for more info.

*ARB132 equipped models use MKT8-B-50MM

**OEM E-Locker models use MKT8-ELOC-B

***OEM 27 spline pinion uses MKT8-ELOC-A

YOKTOYFITKIT-29

MKT8-B

MKTV6-B

MKTLC100-IFS

SKCSTV6

Packaging

Box Weight: 13 lb

Box Dimensions: 1 x 1 x 1 in

Specifications

Differential: Toyota 8″ V6 & 4CYL

Gear Ratio: 5.29

Tooth Count: 37/7

Pinion Splines: 29

Ring Gear Bolts: 10 (not included)

Manufacturer: Nitro Gear & Axle

Fitment

Front

1979-1985 Pick-up (U.S.), Req. YOKTOYFITKIT-29, Use MKT8-B*

1984-1985 Toyota 4Runner, Req. YOKTOYFITKIT-29, Use MKT8-B*

Rear

2012 & Newer Toyota 86, use with Master install Kit MKTLC100-IFS, solid spacer SKCSTV6, and Yoke fit kit YOKTOYFITKIT-29.

1979-1995.5 Pick-up 4×4 (U.S.), Req. YOKTOYFITKIT-29, 4 Cyl. Use MKT8-B*, V6 Use MKTV6-B**

1984-1995 Toyota 4Runner Req. YOKTOYFITKIT-29, 4 cyl. Use MKT8-B*, V6 Use MKTV6-B**

1996-2002 Toyota 4Runner Req. YOKTOYFITKIT-29, Use MKTV6-B**

2003-2009 Toyota 4Runner Use MKTV6-B**

1995.5-2002 Tacoma 4×4 with E-Locker, Req.YOKTOYFITKIT-29, Use MKT8-ELOC-B***

2003-2014 Tacoma 4×4 with E-Locker, Use Use MKT8-ELOC-B

2007-2009 FJ Cruiser Non E-Locker, Use MKTV6-B

2007-2009 FJ Cruiser with E-Locker, Use Use MKT8-ELOC-B

1985-1998 Land Cruiser II, Bundera LJ/RJ/KZJ 70/71/73/78, Req. YOKTOYFITKIT-29, 4cyl. Use MKT8-B*

(KZJ Use MKTV6-B**)

Warranty
