K53162 – Icon 2005-UP Toyota Tacoma RXT Rear Suspension System – Stage 2

K53162 – Icon 2005-UP Toyota Tacoma RXT Rear Suspension System – Stage 2

OVERVIEW:

The 2005-UP Toyota Tacoma is an extremely reliable truck that has served as a versatile platform for drivers seeking the ultimate off-road adventure. From the brutal deserts of the Southwest, to the slickrock of Moab, to the wooded trails of the East coast ICON suspension systems have been put to the test and performed flawlessly for this popular Toyota. ICON Vehicle Dynamics’ engineers have pushed this vehicle to extremes in order to develop the most sophisticated suspension components on the market. Unable to leave “well-enough” alone, ICON is once again aiming to raise the bar in Tacoma performance with the introduction of the RXT Rear Suspension System.

Through thousands of miles of accelerated testing in our R&D program, ICON has spent over a year identifying limiting factors in OE components and seeking to further extrapolate performance out of this vehicle. In a push to provide unparalleled performance for everything from high-speed desert running to off the grid expedition, the RXT Rear Suspension System was born. The RXT Rear Suspension System includes three all-new 2.5 Series rear shock options and a multi-rate leaf spring that work in conjunction with the ICON rear bump stop kit. Installation of this system replaces the aforementioned “limiting factors” and completely redefines the potential of the 2005-UP Toyota Tacoma with a 20% increase in wheel travel and the ability to adjust the leaf spring rate to compensate for varying vehicle setups.

KEY FEATURES:

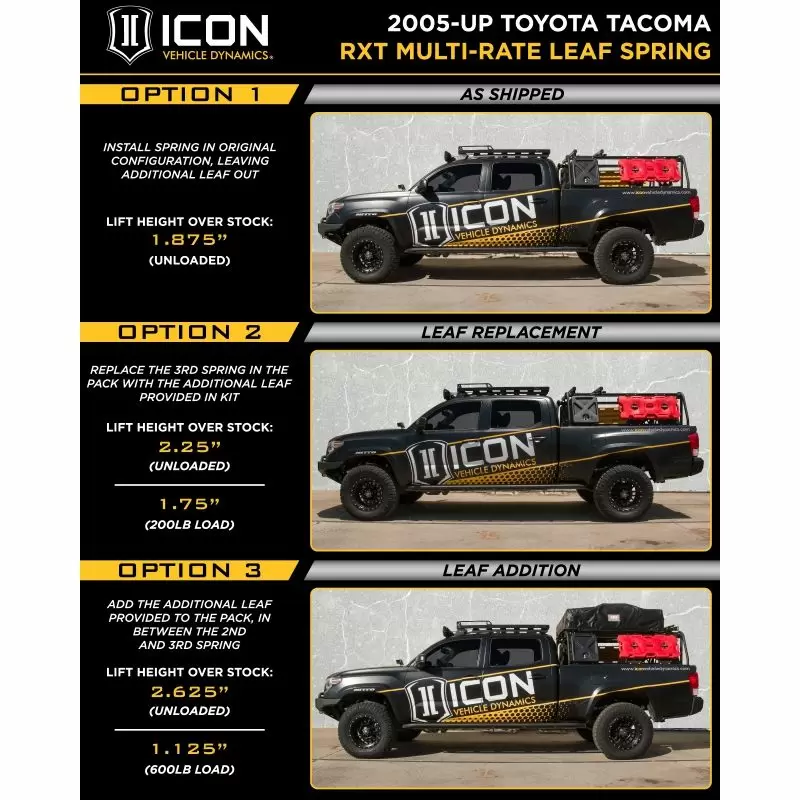

ICON RXT Multi-Rate Leaf Spring

• 3 user-adjustable spring rates for unique vehicle configurations
• Military wrap front eyelet for increased durability
• Galvanized leaf separators reduce friction and aid in corrosion resistance
• Leaf tip inserts reduce noise and increase ride comfort
• Potential for increased wheel travel when used with RXT shock (up to 20%) without sacrificing up-travel
• “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• Direct bolt-in to OEM spring location makes for an easy install

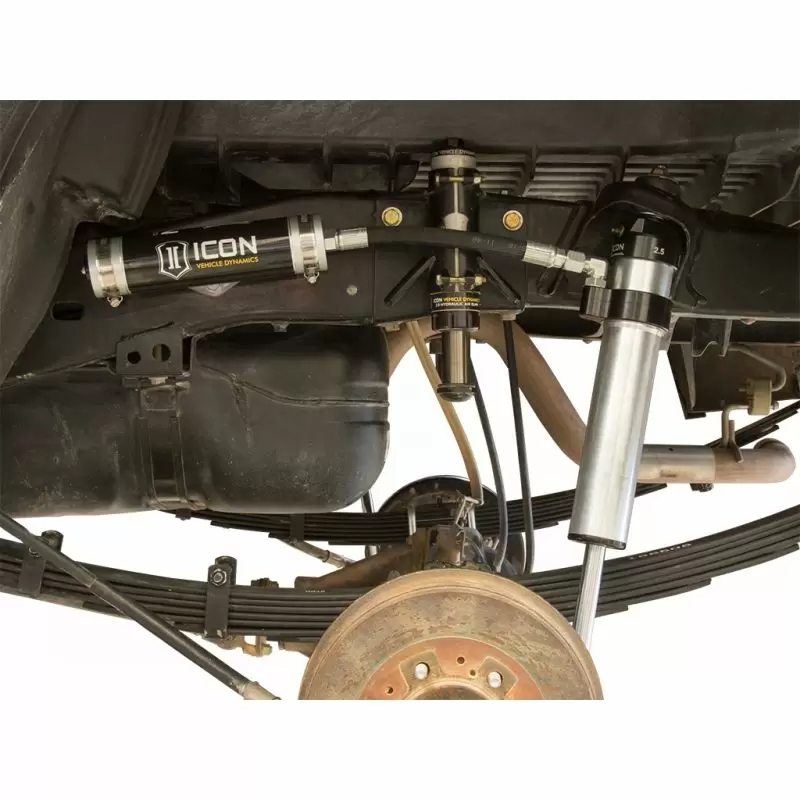

ICON RXT Rear Shock

• Unique side-mounted lower eyelet allows for increased travel while utilizing factory mounting location
• Vehicle-specific tuned shocks provide increased damping and oil volume
• CDC Valve technology allows for 10 settings of quick and easy compression damping adjustment
• Easy-to-adjust detented knobs offer quick adjustability without the use of tools
• 10” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping as shock temperature increases
• Shocks are fully rebuildable and revalveable
• Simple and straightforward installation

ICON Hydraulic Rear Bump Stop Kit

• 2.5” travel bump stop reduces rear end ‘kick’ and improves overall performance
• Position sensitive technology exponentially increases bottom-out resistance
• Vehicle specific bump stop tune to provide smooth engagement and best ride quality
• Direct bolt-in to OEM bump stop location makes for an easy and straightforward install
• Heavy duty 1 ¼” CNC machined nitro steel shaft
• Multi-stage CAD plated body for maximum corrosion resistance
• Double sealed high pressure Schrader valve
• Operating range of 50 – 250 PSI
• Replaceable noise reducing striker pad
• Fully serviceable
• “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability

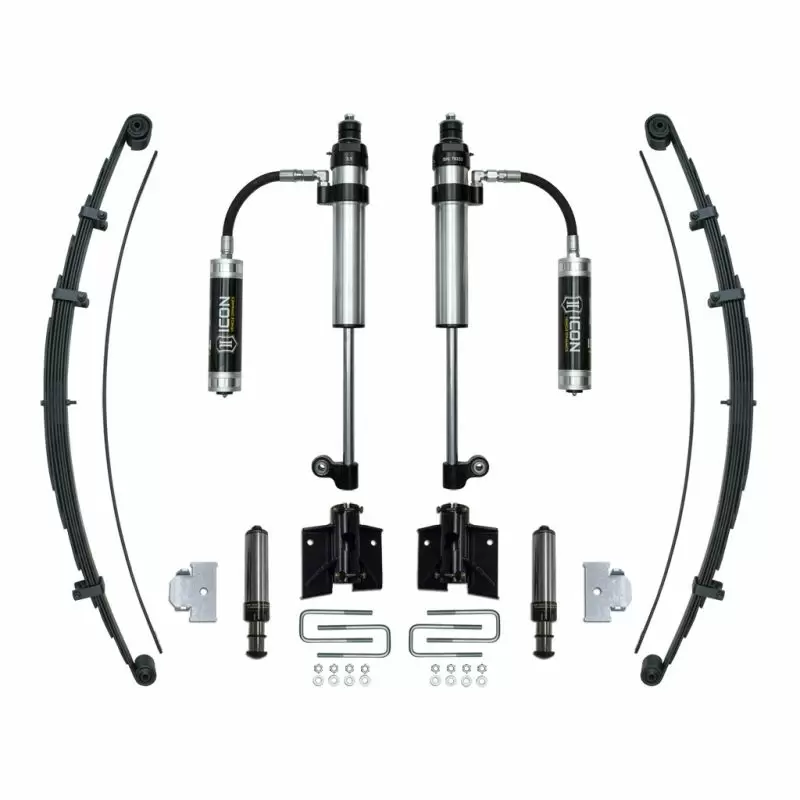

SYSTEM COMPONENTS

• 51101 (QTY.1) | 05-UP TACOMA MULTI RATE RXT LEAF SPRING KIT
• 56103 (QTY.1) | 05-UP TACOMA REAR AIR BUMP KIT
• 57826CP (QTY.1) | 05-UP TACOMA RXT REAR 2.5 RR CDCV (PAIR)
