K5312 – Icon S2 Secondary Shock System – Stages 1-3

K5312 – Icon S2 Secondary Shock System – Stages 1-3

The ICON Vehicle Dynamics S2 Secondary Shock System redefines the off-road capability of by allowing for the installation of a secondary shock to an existing ICON coilover setup. The addition of a secondary 2.5 Series or Omega Bypass shock means rougher terrain and larger off-road obstacles can be overcome with confidence as the damping ability of the vehicle’s suspension is effectively doubled. As opposed to overly complicated and expensive long travel kits, the ICON S2 System is an affordable upgrade that drastically increases off-road performance, is easy to install, and has a modular design that allows owners to upgrade in steps or all at once.

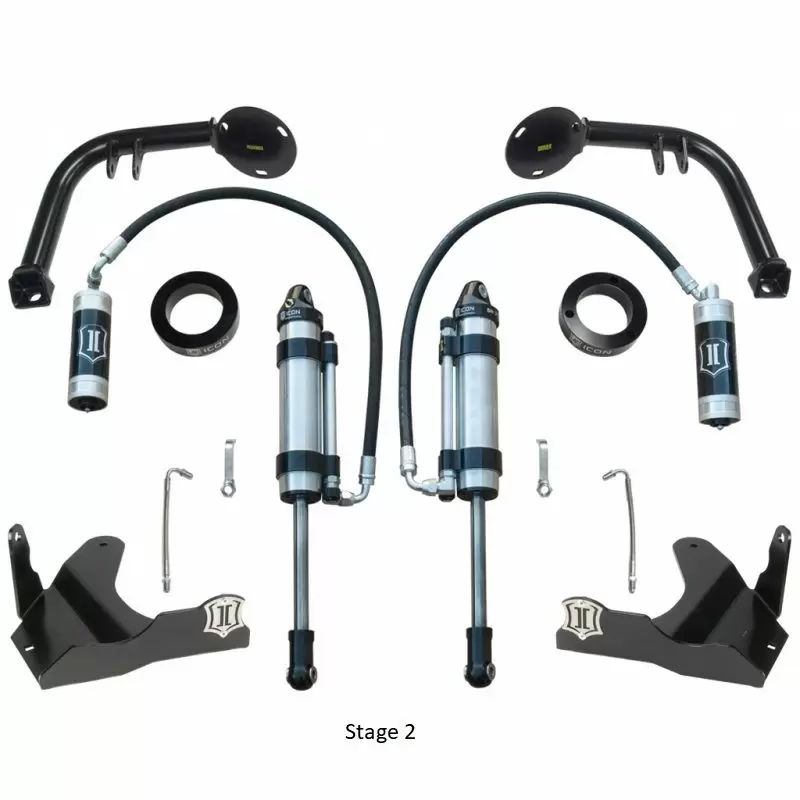

The S2 Secondary Shock System utilizes the factory lower control arms and maintains OE track width while a combination of a billet aluminum shock tower adapters, fabricated shock hoops, and steel skidplates (with incorporated shock mounts) make for a straightforward install with the exceptional build quality you would expect from an ICON Vehicle Dynamics product. The system was designed to eliminate the need for any major alteration of the vehicle’s frame or any other factory suspension components, and the components are 100% removable in case the system is to be installed on another vehicle. The modular design of the S2 kit also allows for standalone installation of the skid plates, which provides the added benefit of protecting the factory lower control arms from potential trail damage that can be experienced while off-road.



KEY FEATURES:

• Drastically improves vehicle damping ability off-road
• Increased vehicle stability on-road
• Utilizes factory lower control arms
• Maintains OE track width
• Vehicle-specific tuned secondary shocks provide increased damping and oil volume
• CDC Valve technology allows for quick and easy compression damping adjustment
• Omega Series two-tube bypass allows for compression and rebound damping adjustment
• Shocks are fully rebuildable and revalveable
• “Mostly bolt-on” design makes for straightforward install

TECH INFO:

• Requires a small shock tab to be welded on to the OEM lower control arm
• Is not compatible with vehicles equipped with KDSS



WHEEL & TIRE FITMENT INFO:

• OEM Wheels & Tires: Yes
• Aftermarket Wheels: 8-8.5″ Wide, 4.75″ Backspace
• Aftermarket Tires: 33 x 11.50

• (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
