GPTACO2016 – 2016-2023 Toyota Tacoma Nitro Gear Package, Auto, Non-Locker, 8” Rear, Select Ratio

GPTACO2016-SELECT – 2016-2023 Toyota Tacoma Nitro Gear Package

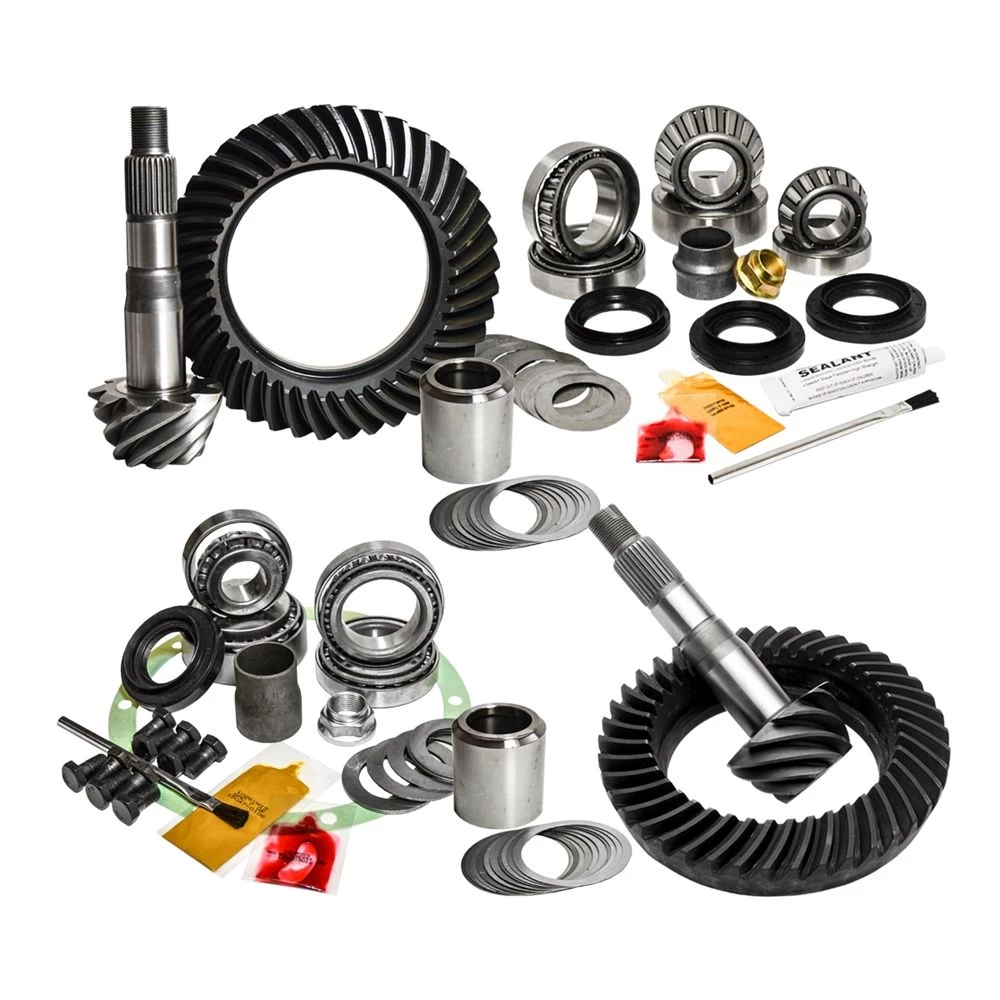

Nitro Complete Gear Package Includes:

• Front ring & pinion
• Front Master Install Kit*
• Rear ring & Pinion
• Rear Master Install Kit*
• *Includes Rear Carrier Bearings for aftermarket carrier. (not shown)
• *Including upgraded solid pre-load spacers

A Nitro gear change will help get that performance and economy back!

If you’ve fitted larger tires to your vehicle then you are likely experiencing a loss in performance, fuel economy, and more constant transmission gear “hunting” – This is because the larger tires reduce your engine’s RPMs below the optimal power band. Re-gearing the differentials in your vehicle is the only way to get your vehicle back into its optimal operating RPM range, thus improving performance and reducing strain on your vehicle’s drivetrain. This is especially important for today’s vehicles as they feature tall factory gearing and overdrive transmissions which are less tolerant to increase in tire size or the weight of added accessories.

It’s a common misconception that gear changes are reserved only to hardcore off-roaders or trucks with huge tires. However, re-gearing is one of the single most beneficial modifications you can make to keep the performance, economy, and durability of your daily-driven 4×4. This is a mod for anyone with larger tires, increased weight, or for increased performance on stock vehicles for towing or increased acceleration.

Nitro Gear Package for 16-23 Toyota Tacoma is one of Nitro’s biggest sellers because these trucks need regeared. The Tacoma has a very tall overdrive in 5th AND 6th gear to turn low RPMS. The new 3.5l V6 makes plenty of horsepower, but needs to reach it’s power band. Even with stock tires we have found the 6th gear is nearly useless, the gearing is so high that the transmission is constantly shifting. In a STOCK Tacoma Automatic 6th gear puts you at ~1500 RPM @ 60MPH. This simply does not work. You may not realize it, but you probably are hardly ever in 6th gear unless you are almost going downhill. By regearing you can bring the motor back to the RPM it needs to be. This will improve Economy, Performance, and shifting. This is one of the most important modifications you can make to your late model Tacoma whether on a stock truck, or especially when running oversized tire. This is the only way to properly compensate for inadequate factory gearing and the increase in tire diameter. We often hear people are worried they will turn high rpm’s if they regear. This is simply not the case. Remember, the Auto trans has a double overdrive. See the below examples:

Example Stock 2019 Tacoma TRD Offroad w/ Auto Trans:
3.91 & Stock Tire, ~1500 RPM @ 60 MPH, ~1750 RPM @ 70 MPH (NOT ENOUGH RPM!)
4.88 & Stock Tire, ~1950RPM @ 60 MPH, ~2200 RPM @ 70 MPH
33” 4.88, ~1750 RPM @ 60 MPH, ~2000 RPM @ 70 MPH)
33” 5.29, ~1900 RPM @ 60 MPH, ~2250 RPM @ 70 MPH)
*Manual trans RPM figures will be higher.



Tech Notes:

• Includes Rear Carrier bearings for Aftermarket LSD, Locker, etc. If running factory carrier, you will need 2x TOY90366-53004
• Must re-use factory rear carrier bearings.
• Fits with 8″ Rear.Fits factory OEM carrier or ARB RD111.
• Solid Preload spacer replaces stock type crush sleeve improving bearing preload retention, eliminating possible crush sleeve damage if the yoke is impacted offroad and allows the pinion seal to be serviced without complete disassembly of the differential to replace a crush sleeve and reset pinion bearing preload.
• Nitro Master kits include name brand OE quality bearings.
