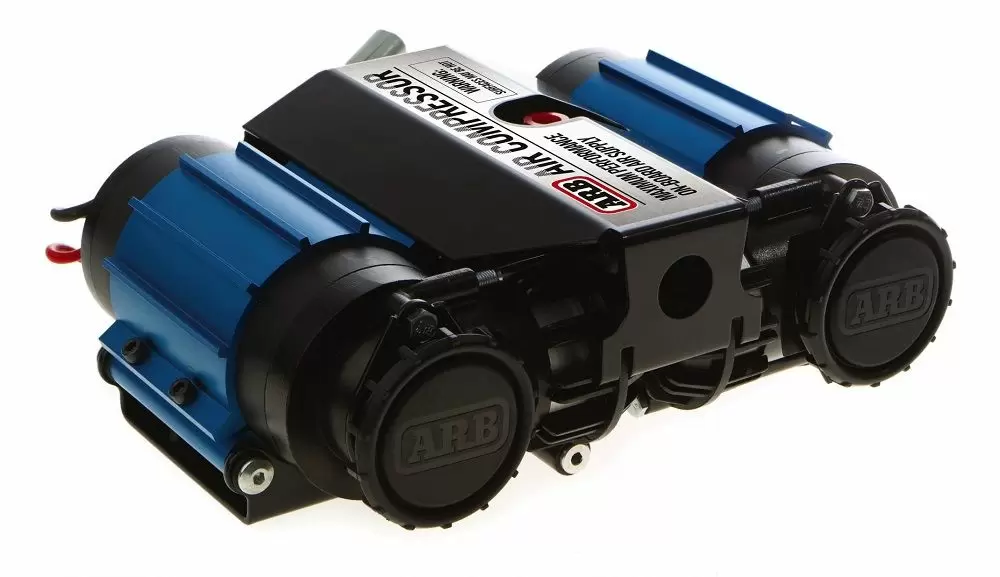

CKMTA12 – ARB On-Board High Performance 12 Volt Twin Air Compressor

Features:

• Available in 12V (CKMTA12) or 24V (CKMTA24) models.

• Constructed primarily of light weight, high strength, engineering grade

• materials, including military and aerospace standard components.

• Pressure switch controlled air manifold system regulates pressure between 9.3Bar [135PSI] and 10.3Bar [150PSI] suited to air tools and all ARB Air Locker equipped vehicles.

• Highest air flow rate of any 12V compressor of its size on the market at 174LPM [6.16CFM].

• High efficiency design consumes only 56 Amps at maximum air flow.

• Built with sealed components for moisture and dust resistance.

• Hard-anodized cylinder bores and PTFE (Teflon) impregnated carbon fiber piston seals for reduced friction and maximum trouble free life.

• Ducted IP55 sealed brushless DC cooling fan and anodized motor mounting brackets effectively dissipate heat from the motors, heads and electronics allowing for a 100% duty cycle (under room temperature conditions).

• Anti-vibration / sound deadening is integrated into the mount.

• Relocatable splash resistant air filter assemblies for cleaner, cooler air supply and versatile waterproof air intake positioning.

• High density and high flow washable sintered bronze air filter elements.

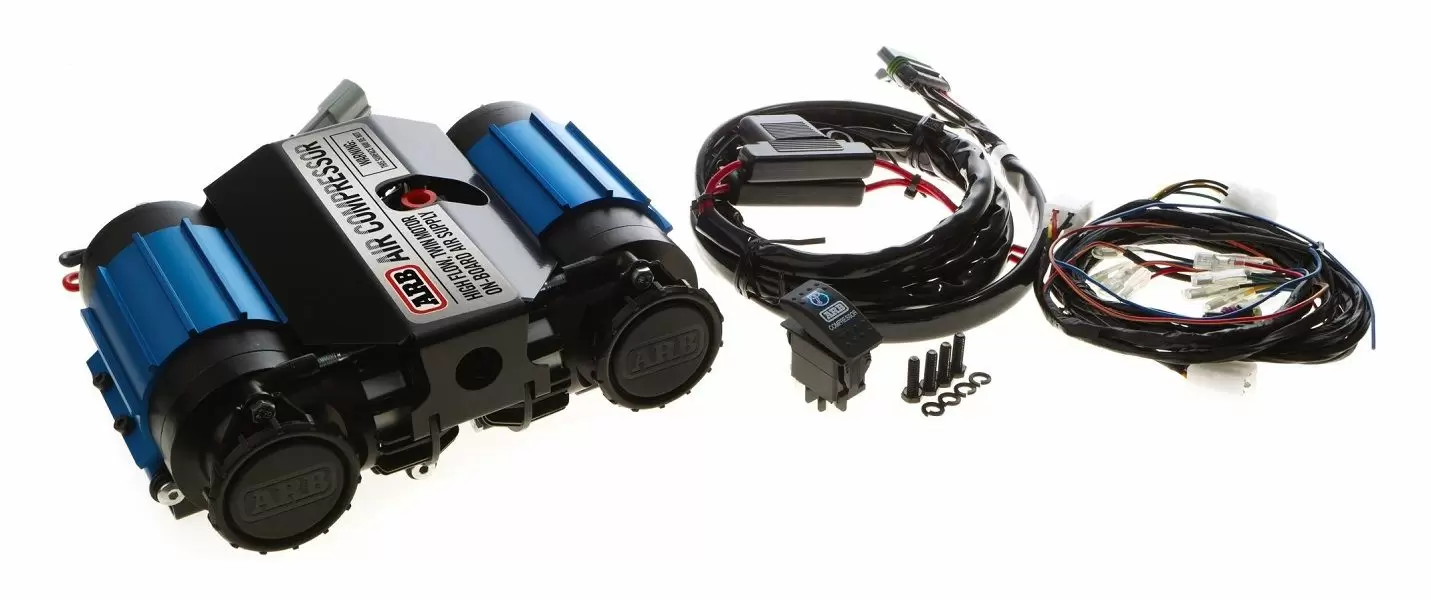

• Full wiring loom included for simplified installation and easy plug-in connectivity to Air Locker control solenoids. (Note: Air Locker Manifold Kit #171503 required to mount solenoids).

• Equipped with dual heavy duty Maxi-Fuses for professional in-line circuit protection and true circuit redundancy in case of a fault.

• Motors are water sealed, 100% ball bearing equipped (i.e., no bushings used), and feature a unique linear brush pre-load system for extra long life, low heat and quiet operation throughout the life of the unit.

• Motors are internally thermal protected against extreme temperature damage.

• Compressor pistons are equipped with a heavy duty European made cylindrical roller bearing.

• Over-pressure safety valve equipped.

• Sealed illuminated automotive grade dash switch included.

• Fully serviceable and all replacement parts available.

• EMF suppressed for use in proximity to sensitive electronic equipment.

• CE and C-Tick compliant.

• Engineered, built, and individually dyno-tested in Australia from local and imported components.
