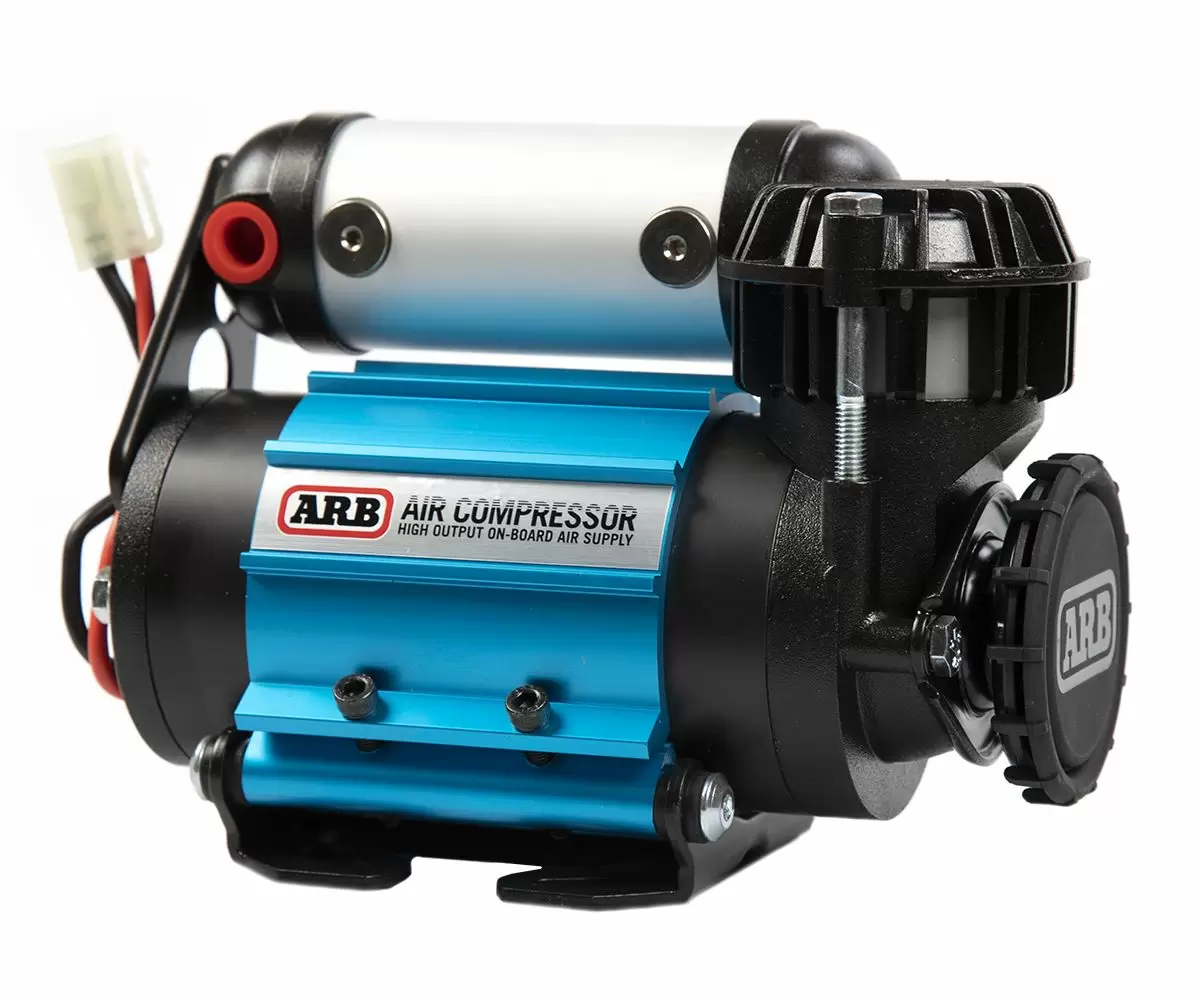

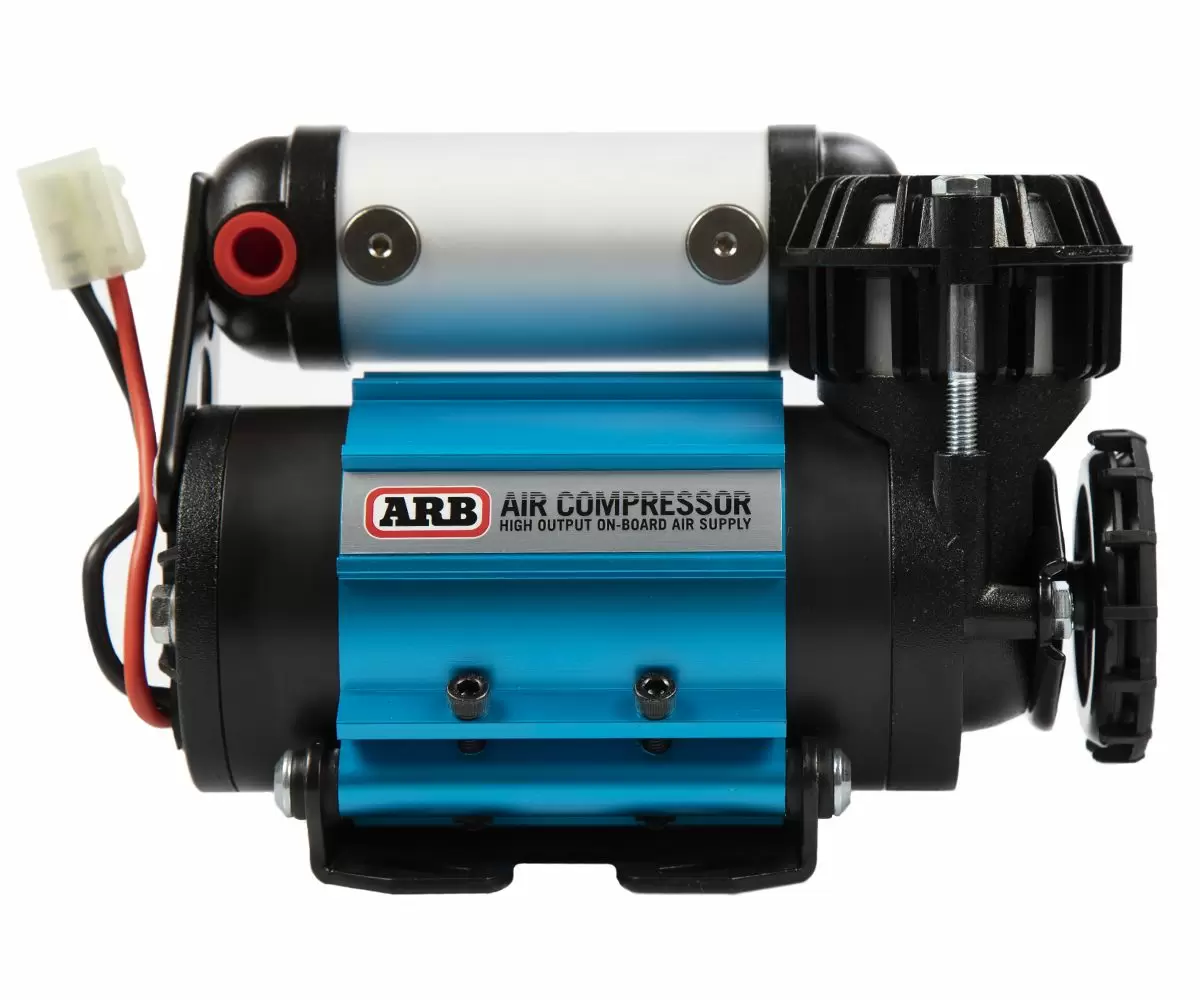

CKMA12 – ARB On-Board High Performance 12 Volt Air Compressor

CKMA12 – ARB On-Board High Performance 12 Volt Air Compressor

Few 4×4 accessories offer as many advantages to 4WDers as readily available on-board air. Considered by truck owners around the world to be a staple accessory for off road travel, an ARB 4×4 air compressor provides an immediate source of compressed air anywhere a 12 volt power source is available.

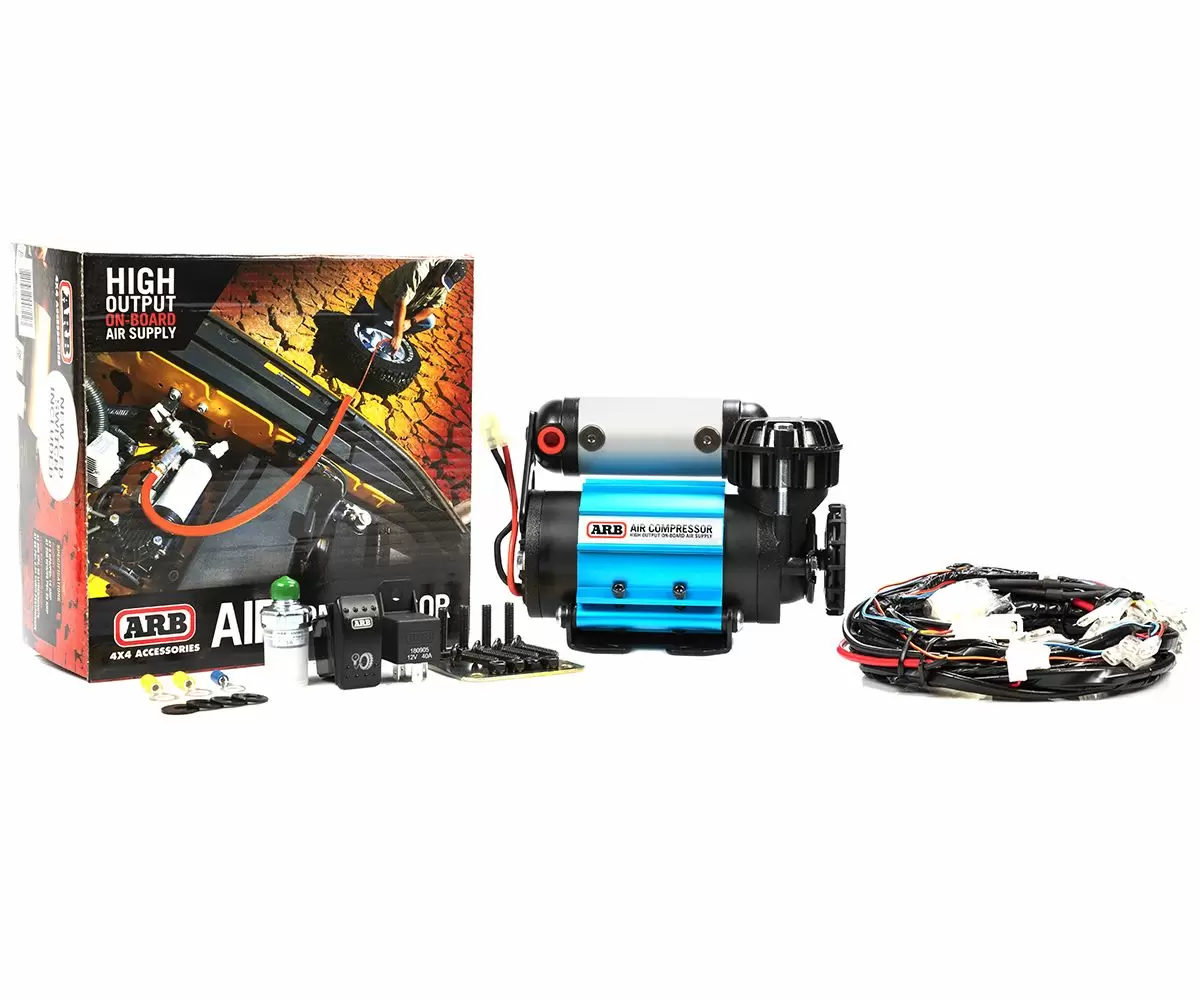

Permanently mounted, this compressor is installed into your truck and includes a full wiring loom with Air Locker solenoid plug in contacts, mounting hardware with reinforcing bracket and quality compressor isolating switch.

This compressor can be used to activate Air Lockers, and can perform other functions such as inflating tires, and camping gear with an optional inflation kit sold separately.

Please click here to view technical specifications.

Features:

• Compact design makes it the highest flowing compressor in its class (voltage vs size)
• Fully sealed components for moisture and dust
• Pressure switch controlled air manifold systems specially designed to suit ARB Air Locker™ equipped vehicles
• Hard anodized cylinder bore and PTFE (Teflon) impregnated carbon fiber piston seal for reduced friction and maximum trouble free life
• New anodized mounting bracket dissipates motor heat and allows compressor to be repositioned 180°
• Anti-vibration/sound deadening mount
• Relocatable splash resistant air filter assembly for cleaner, cooler air supply
  and versatile waterproof air intake positioning
• High density, high flow washable sintered bronze air filter element
• Maxi-Fuse equipped for professional in-line circuit protection
• Motor is 100% ball bearing equipped with unique linear brush pre-load system for extra long life, low heat and quiet operation
• Compressor piston is equipped with a German made high shock rated cylindrical roller bearing
• Constructed entirely of light weight, high strength engineering grade materials, including military and aerospace grade components
• Over-pressure safety valve equipped
• Motor is internally thermal protected against extreme temperature damage
