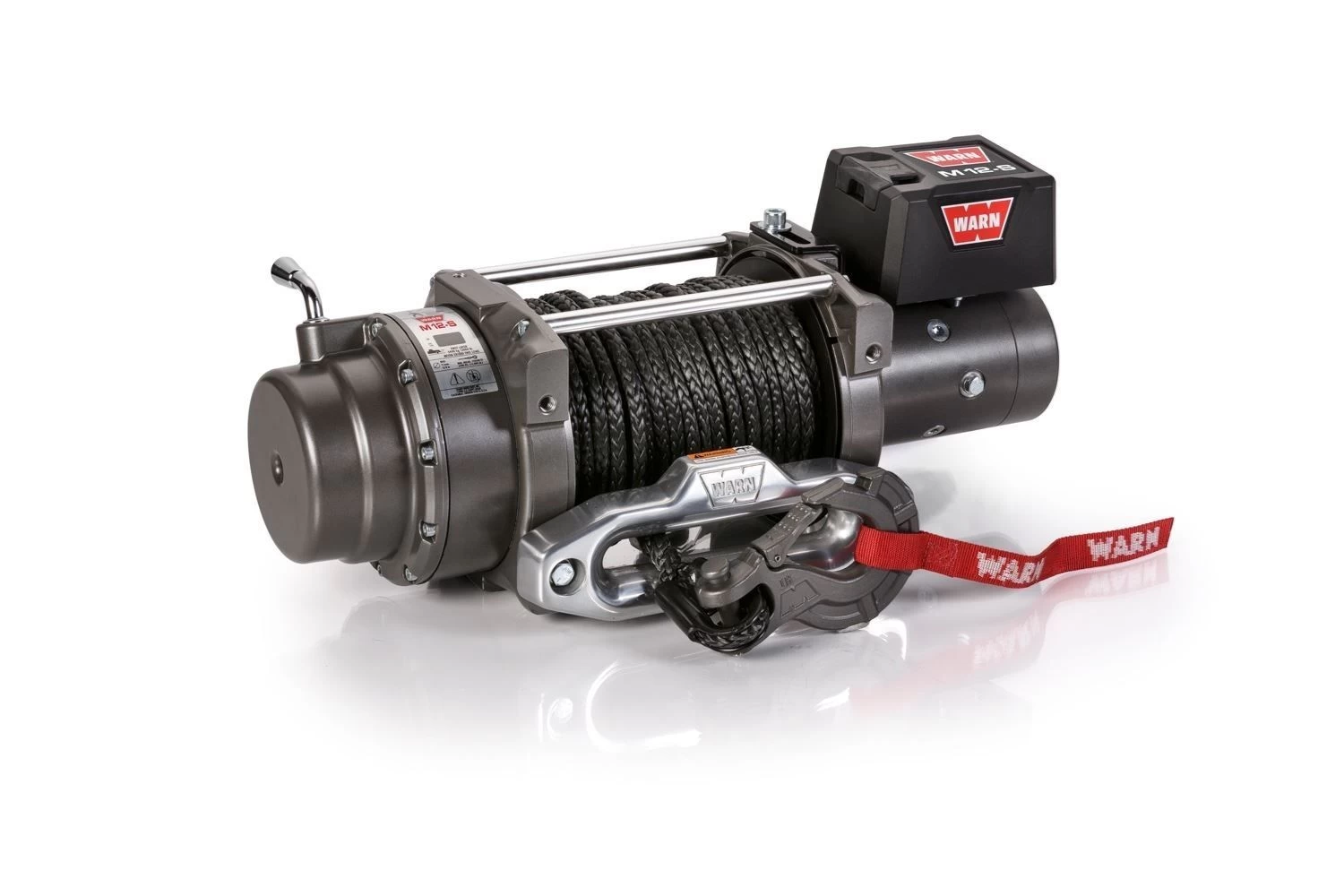

97720 – Warn M12-S Heavyweight 12.000 Lb Winch With 100′ Of Synthetic Rope

97720 – Warn M12-S Heavyweight 12.000 lb Winch with 100′ of Synthetic Rope

The WARN combines a proven WARN large-frame winch with 100 Foot of 3/8 Inch state-of-the-art Spydura synthetic rope. The rope’s heat-treated construction provides maximum tensile strength, and the temperature-resistant sleeve on the first layer provides maximum heat protection. The winch’s 12,000 Pounds pulling capacity makes it great for large pickups and heavier SUVs.

• 12,000 Pounds Capacity
• Large-Frame Winch Architecture Mounts Feet Forward
• Contactor Control For The Ultimate In Reliable Electronics
• Powerful, Efficient Series-Wound Motor
• Durable, Smooth Three-Stage Planetary Gear Train
• Best-In-Class Cone Brake
• Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.

Attributes:

• Winch Rating: 12000 Pound
• Recommended Use: Vehicle Recovery
• Operation Type: Electric
• Mount Type: Fixed Mount
• Voltage: 12 Volt
• Free Spooling: Yes
• Line Length (FT): 100 Feet
• Line Material: Synthetic
• Remote Type: Wired
• Universality: Fully Universal

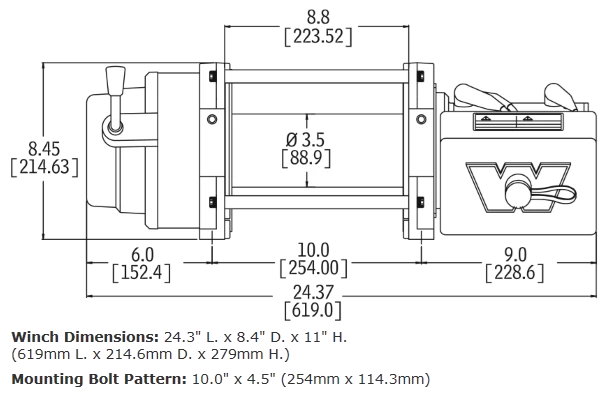

• Mounting Pattern Size: 10 Inch Length X 4-1/2 Inch Width
• Brake Type: Automatic Cone
• Max Amp Draw: 440 Amp Draw At 12000 Pound
• Gear Reduction Ratio: 261:1
• Includes Mounting Hardware: Yes
• Thermal Shutoff: No
• Color: Gray
• Fairlead Type: Hawse
• Line Speed At Max Pull: 3.9 Feet Per Minute At 12000 Pound
• Electrical Control Type: Contactors
• Motor Type: Series Wound
• Drive Gear Type: Planetary
• Line Diameter (IN): 3/8 Inch
• Mounting Hole Quantity: 4
• Estimated Install Time (Hours): 2
