68500 – Warn 9.5 XP Series 9.500 Lb Winch With 100′ Of Wire Rope

68500 – Warn 9.5 XP Series 9.500 lb Winch with 100′ of Wire Rope

The fast, powerful Warn 9.5XP extreme performance is designed for the serious off-roader who demands a Winch that will perform under the most extreme conditions in the world. With 9,500 Pound. Of pulling power and the fastest line speed of any Warn Winch under load, the 9.5XP delivers extreme performance that eats up the competition even in competition. The 9.5XP Winch features the high output parallel series wound Winch motor that’s the strongest and most durable in the industry. The 6 Horsepower motor, 3 stage planetary gearing and extended duty control pack work in sync to tackle the most demanding pulls. Full face contact drum seals, motor, and end housing gaskets deliver extreme-duty water resistance. A high gloss, chip resistant powder coat finish over primer coated alloys affords superior corrosion resistance.

• High-output parallel series wound winch motor is the strongest and most durable in the industry
• Extreme-duty winch sealing. Enables superior water resistance
• Exclusive brake design. Provides superior operator control when winching
• Extended-duty control pack delivers long duty cycle to help you tackle the most demanding pulls
• 3-Stage planetary geartrain. Proven to be the most reliable efficient and durable design
• Remote-mount, next-generation control box allows for various mounting options
• Remote control with 12′ (3.7m) lead
• High gloss, chip-resistant powder coat finish. Provides superior corrosion resistance
• 100′ of steel winch rope
• Limited lifetime warranty (geartrain), 7 year warranty (electrical)

Attributes:

• Winch Rating: 9500 Pound
• Recommended Use: Vehicle Recovery
• Operation Type: Electric
• Mount Type: Fixed Mount
• Voltage: 12 Volt
• Free Spooling: Yes
• Line Length (FT): 100 Feet
• Line Material: Steel
• Remote Type: Wired
• Universality: Fully Universal

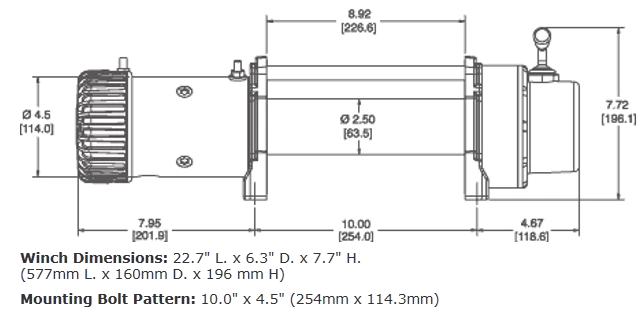

• Mounting Pattern Size: 10 Inch Length X 4-1/2 Inch Width
• Brake Type: Automatic Cone
• Max Amp Draw: 482 Amp Draw At 9500 Pound
• Gear Reduction Ratio: 156:1
• Includes Mounting Hardware: No
• Thermal Shutoff: No
• Color: Gray
• Motor Horsepower: 6 Horsepower
• Fairlead Type: Roller

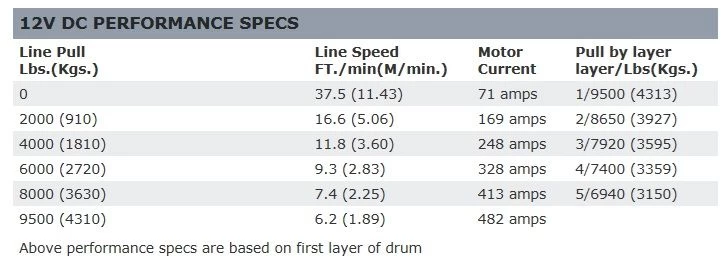

• Line Speed At Max Pull: 6.2 Feet Per Minute At 9500 Pound
• Electrical Control Type: Contactors
• Motor Type: Series Wound
• Drive Gear Type: Planetary
• Line Diameter (IN): 5/16 Inch
• Mounting Hole Quantity: 4
• Drum Material: Steel
• Estimated Install Time (Hours): 2
