3423160K2 – ARB Front Summit Bar Kit (20-23 Tacoma) Textured

3423160K2 – ARB Front Summit Bumper for 2020-2023 Tacoma with a Textured Integrit Finish

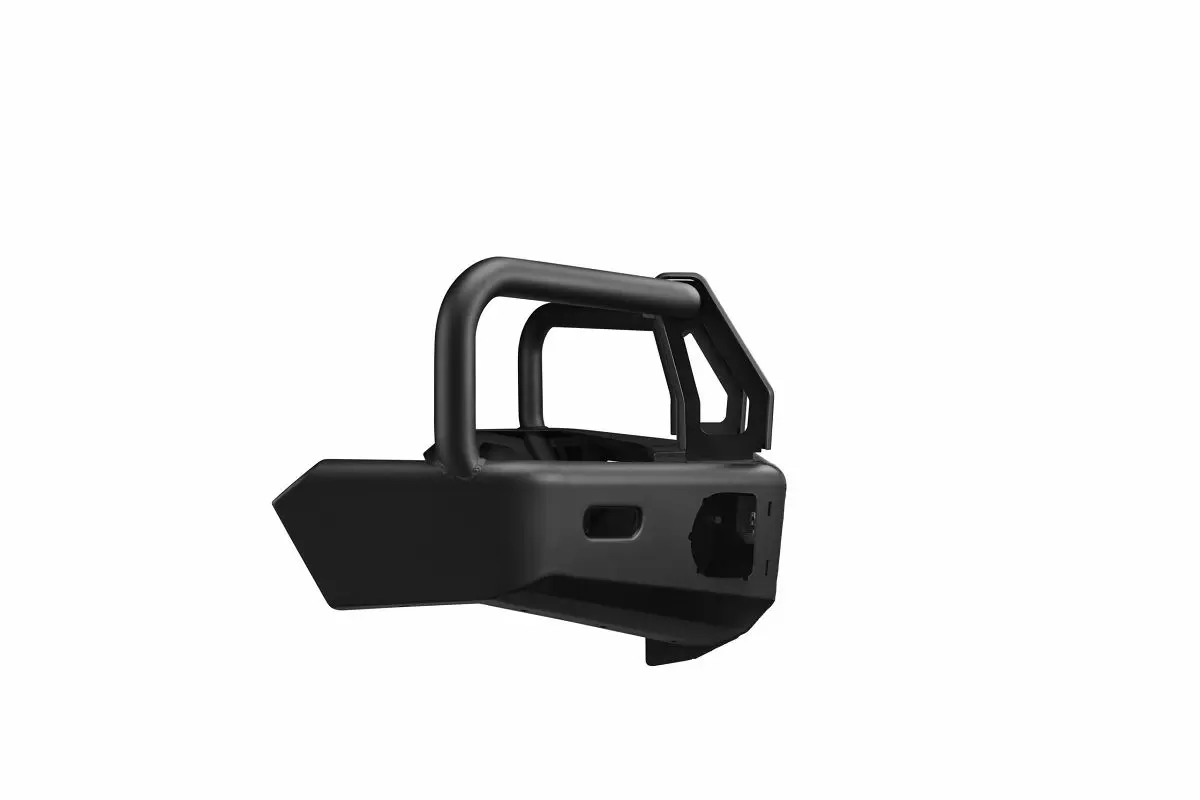

The all new Summit bumper continues the ARB tradition of pioneering innovation and our relentless pursuit on quality. Summit is a modern interpretation of the renowned ARB Deluxe Bumper styled to complement modern dual cab and SUV vehicles through a fresh, contemporary design language. Building upon our proven air bag compatible bumper mounting architecture, the Summit bumper incorporates unique design features such as a 30mm edge radius on the wings and centre pan, wider press formed cover straps, 60.3mm top tubing, two-piece polyethylene buffers and redesigned fog light surrounds. This results in the most visually impressive frontal protection system on the market.

• Vehicle specific design for the 2020-2023 Toyota Tacoma
• Durable steel construction for maximum protection
• Incorporates ARB’s renowned multi fold upswept and tapered wing design for optimum strength and approach angle.
• 30mm radius on wings and center section.
• Engineered, air bag compatible mounting system secures to the chassis via high tensile bolts.
• Split pan design for maximum strength and airflow.
• 2 piece grill design for split pan.
• Extensive protection panels on center and either side. 60.3mm outer frames and center cross bar.
• Formed cover strap.
• Pressed form top pan and aluminum (powder coated black) winch cover panel.
• Twin Hi-Lift jack points located beneath each buffer for optimum strength.
• Durable two piece buffers including cover strap intersection caps.
• Provision to accommodate ARB Intensity LED’s and a range of IPF lights.
• ARB LED indicator and clearance light included.
• Two antenna brackets located on the top of the center frame.Approximate weight of the bar, chassis mounts and fitting kit is 170 lbs.
• Zinc rich primer for additional corrosion resistance.
• Finished in Integrit black textured powder coat.

Fitment Notes:

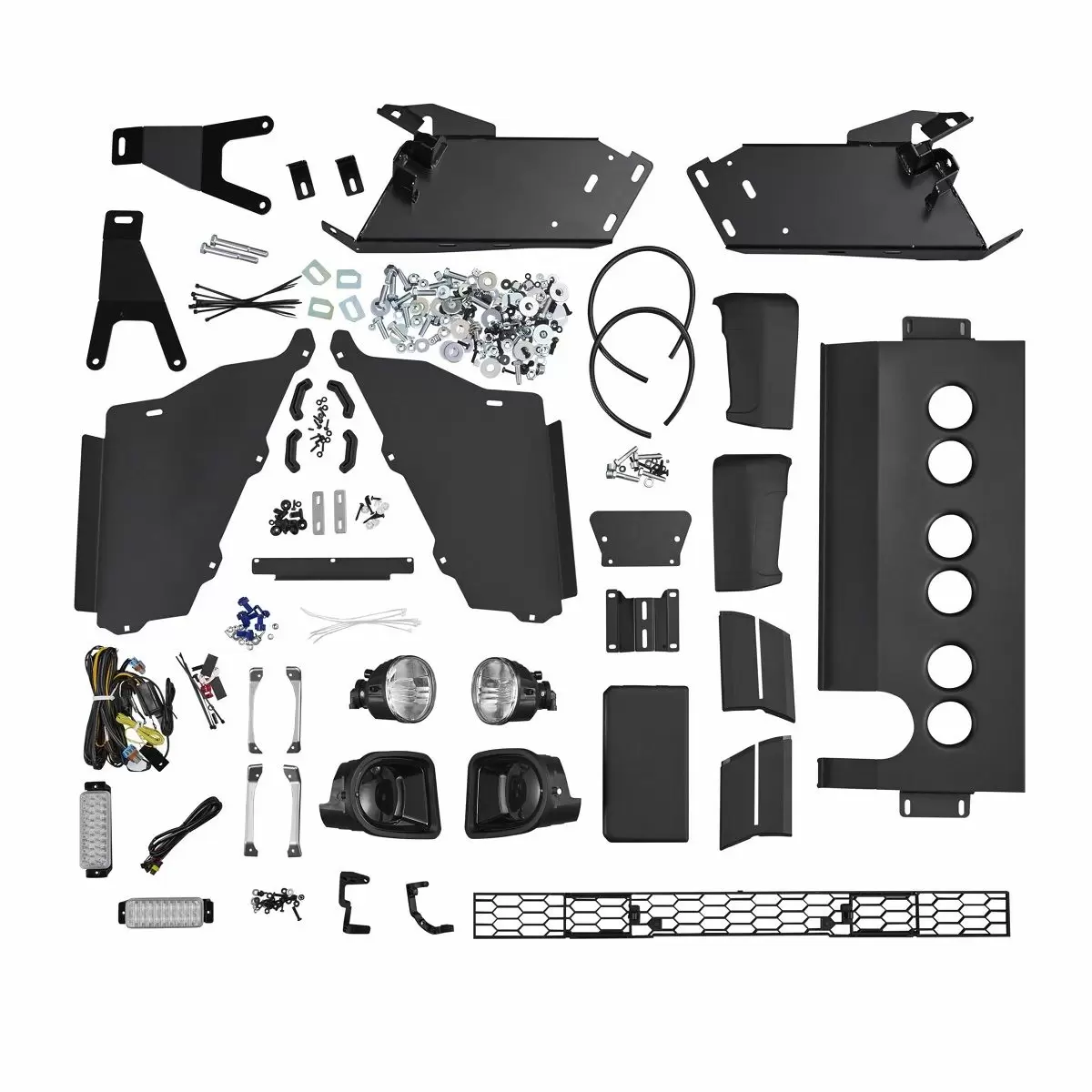

• Includes Tacoma Summit Bumper, Bumper Fitting Kit, Winch Install Kit, ARB Fog Light Kit and Fog Light Loom and Camera Relocation Kit.
• Optional hawse fairlead spacer kit part number 3500600 required when fitting a hawse fairlead.
• Not Compatible with TRD Pro Models
• Warn part no W89965 required when fitting Warn Zeon and Zeon Platinum winch
• Warn part no W94288 enhanced signal kit may be needed when fitting Warn Zeon Platinum winch
• Warn part W106928 wire extension required when fitting Warn VR EVO
• Compatible with Toyota Safety Sense.

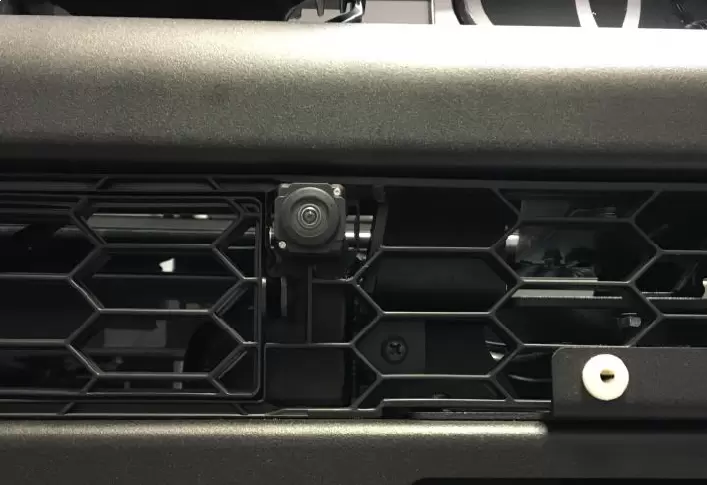

• When fitted to the ARB Summit Bumper 3423160K, due to the winch cradle integrated into the bumper design, the camera is relocated to a position that is 6.3in/160mm offset to the right and 3.1in/80mm lower. The camera image is therefore captured from 3.1in/80mm lower and 6.3in/160mm offset to the right. Once the ARB Camera Relocation Kit is fitted, the Multi Terrain Monitor image will alter the view of the area surrounding the vehicle and should be used as a supplementary driver assist system only.



*This item Ships Freight – Please call for shipping estimates and options we may call you to collect extra shipping charges on all bumpers
