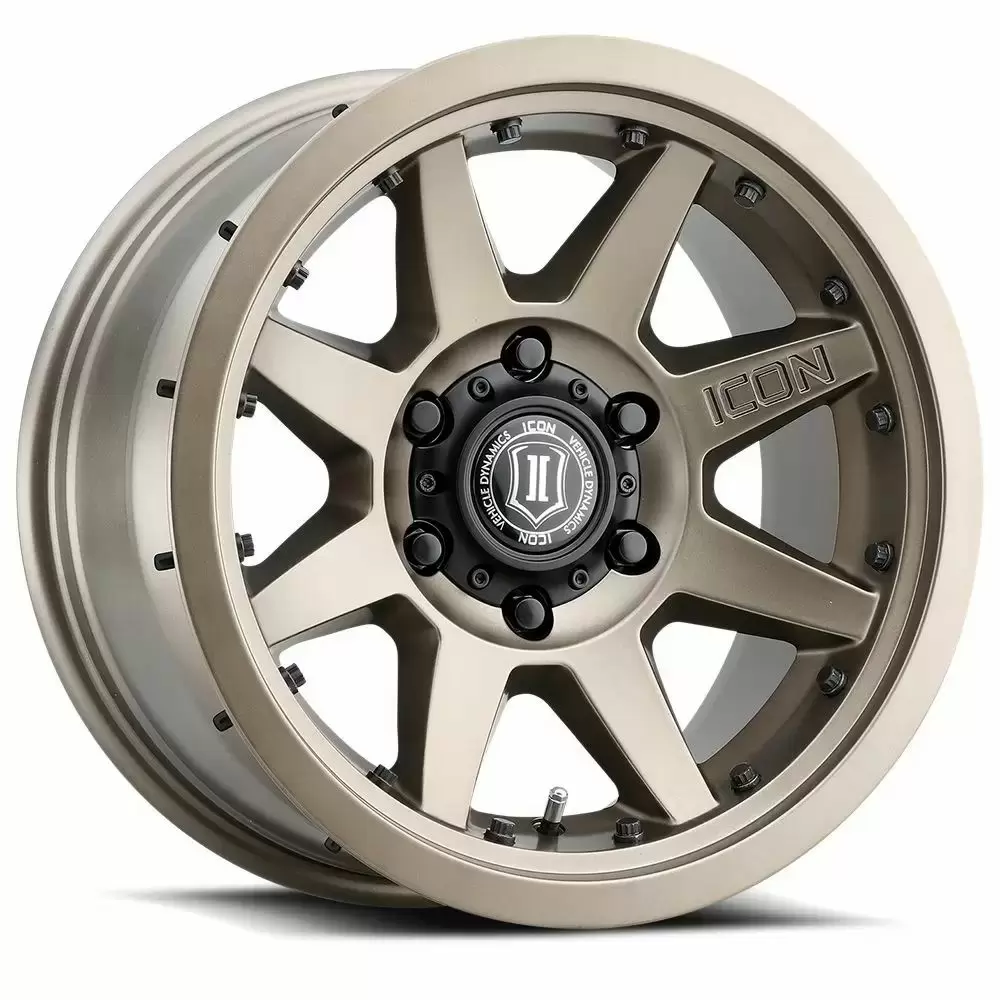

21817859057 – Icon Alloys Rebound Pro Wheel

21817859057 – Icon Alloys Rebound Pro Wheel – 2022 Tundra

Any hardcore off-road enthusiast knows the numerous benefits that lower tire pressure offers such as improved ride quality and a larger contact patch for increased traction. However, low pressure also increases the risk of de-beading the tire during extreme side loads or aggressive driving. While traditional beadlock wheels address this issue by clamping the tire’s bead, they also need frequent maintenance, require specialty tools/parts, increase rotational mass, and are NOT legal for on-road use.

The ICON Alloys Rebound PRO with patent pending InnerLock technology offers the best of both worlds by using a robust bead retention system to keep the tire bead secured to the wheel while also remaining fully DOT compliant. This provides confidence in knowing that your wheels are prepared to tackle whatever situation you encounter – on or off the beaten path. InnerLock is ready for any type of terrain and every single adventure.

Patent pending InnerLock technology is an all-new way of capturing the tire bead and retaining it onto the wheel. InnerLock uses a series of O-ring sealed, hardened alloy pins that are inserted radially on the inner side of the tire bead to create a barrier that prevents the tire from unseating during extreme side loads. Additionally, InnerLock wheels are lightweight, strong, don’t require bolt retorquing, and are DOT compliant for the ultimate blend of on-road safety and off-road performance.

USED, ABUSED, LAB APPROVED

During an accelerated R&D process, ICON engineers subjected the Rebound PRO to thousands of miles of real-world abuse throughout harsh and unforgiving environments. After on-vehicle testing was concluded, the Rebound PRO was sent to an independent contractor for precise lab testing, specifically the FMVSS No.139 Tire Bead Unseat Resistance Test (modified to 10 psi). Results from multiple tests validated the effectiveness of ICON’s InnerLock technology by exceeding the mechanical limits of the machine (over 7600lbs load) without ever de-beading the tire.

WHEELS DESIGNED WITH SUSPENSION IN MIND

Staying true to the ICON Alloys approach, the Rebound PRO has been engineered to maximize caliper clearance and optimize wheel position for un-hindered suspension travel and steering function. Backspace and wheel offset dimensions have been strategically developed to reduce scrub radius, improving all-around handling and ride quality. The Rebound PRO has also been strength tested to yield a 3,200lb load rating – making it one of the strongest wheel options on the market. With build features such as these, it’s clear that a set of ICON Alloys wheels is the perfect complement to any truck, Jeep, or SUV

Specs:

• Size: 17×8.5
• Lug Pattern: 6×5.5
• Back Spacing: 5.75″
• Offset: 25mm
• Bore: 25mm
• Load Rating: 3200 lbs
