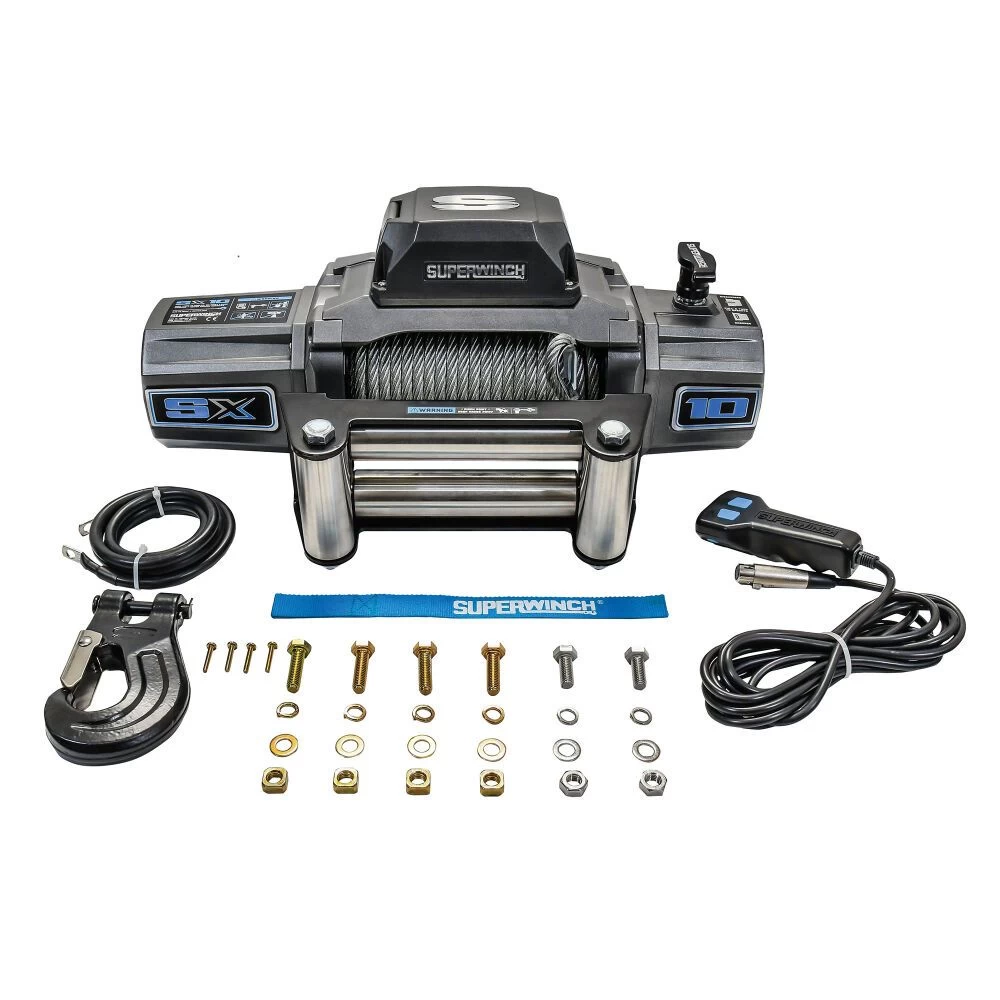

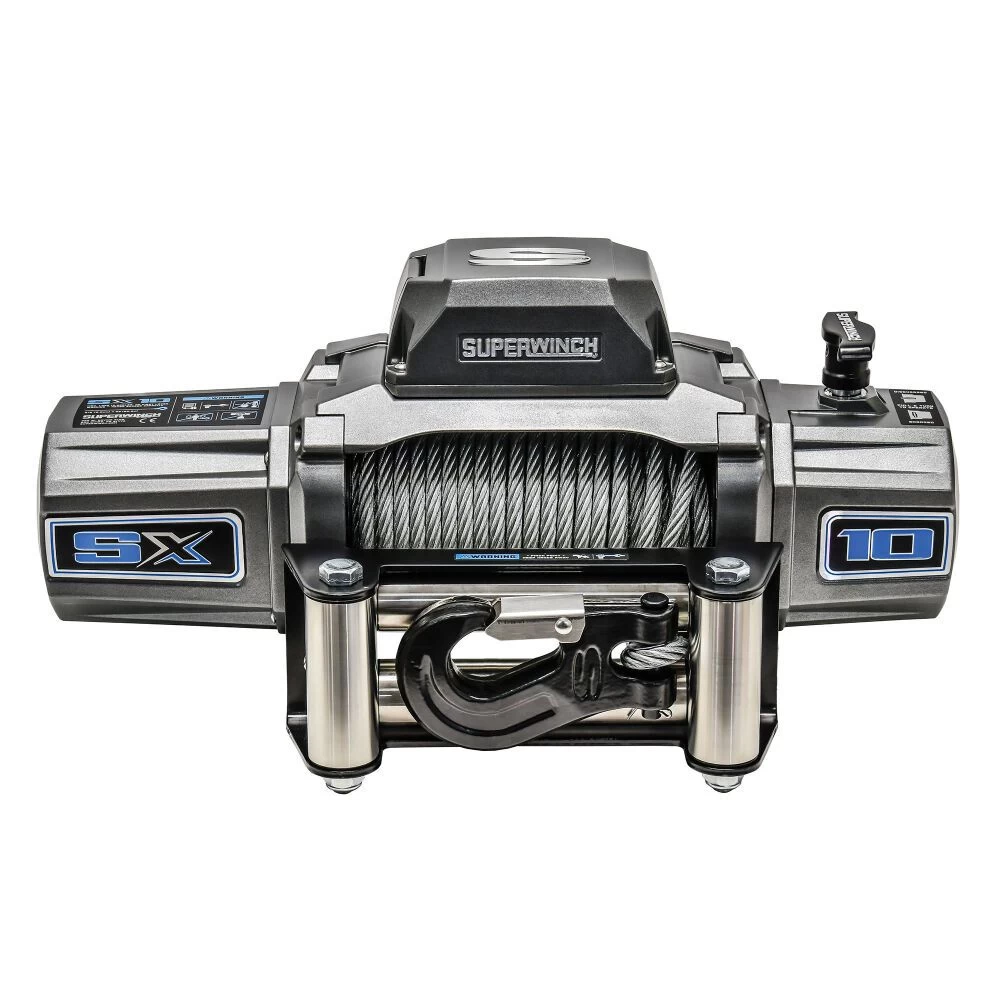

1710200 – Superwinch SX10 10000 Lb 12V DC 3/8in X 85ft Wire Rope SX Winch

1710200 – Superwinch SX10 10000 Lb 12V DC 3/8in x 85ft Wire Rope SX Winch

The SX10 winch is engineered to provide users with the ideal combination of power, speed, innovation, and proven performance they demand from Superwinch. Innovative features such as a patented drum light, relocatable die-cast aluminum control box, 3/8in diameter wire rope, and a 12ft lighted wired remote come standard. SX Series winches exceed the most demanding standards of today’s modern vehicles, while delivering an affordable and stylish design which incorporates many class-leading features not found in other high-performance winches. Providing 10,000 lbs. of raw pulling power, the new SX10000 wire rope model has a sleek modern look and is built to last. With an IP68 rating for worry-free dustproof and waterproof operation, and a durable metallic graphite powder-coated finish, this winch has it all.

• 12V DC 10,000 lbs rated line pull
• 5.5 HP sealed motor
• Relocatable die-cast aluminum control box
• 12 ft handheld wired remote features flashight with rechargeable lithium ion battery

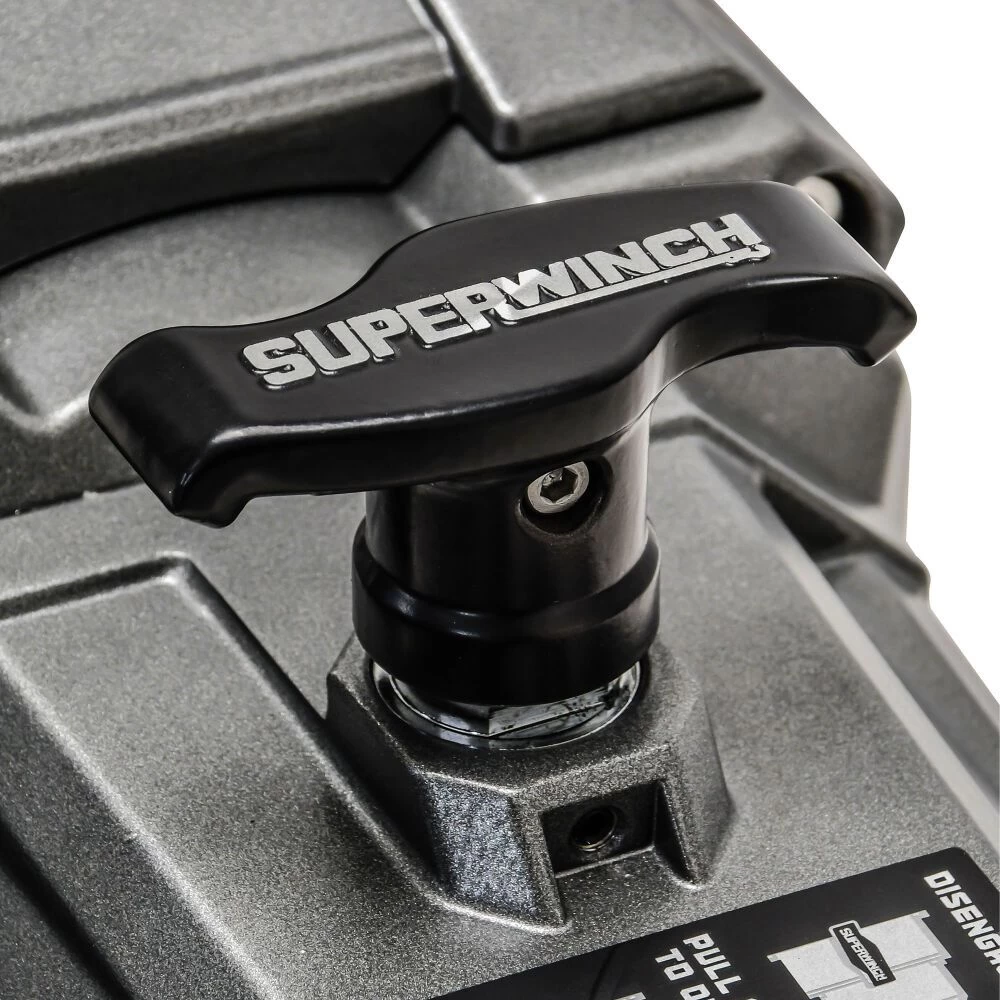

• Pull-and turn clutch handle
• 3-stage planetary gearing with 218:1 ratio

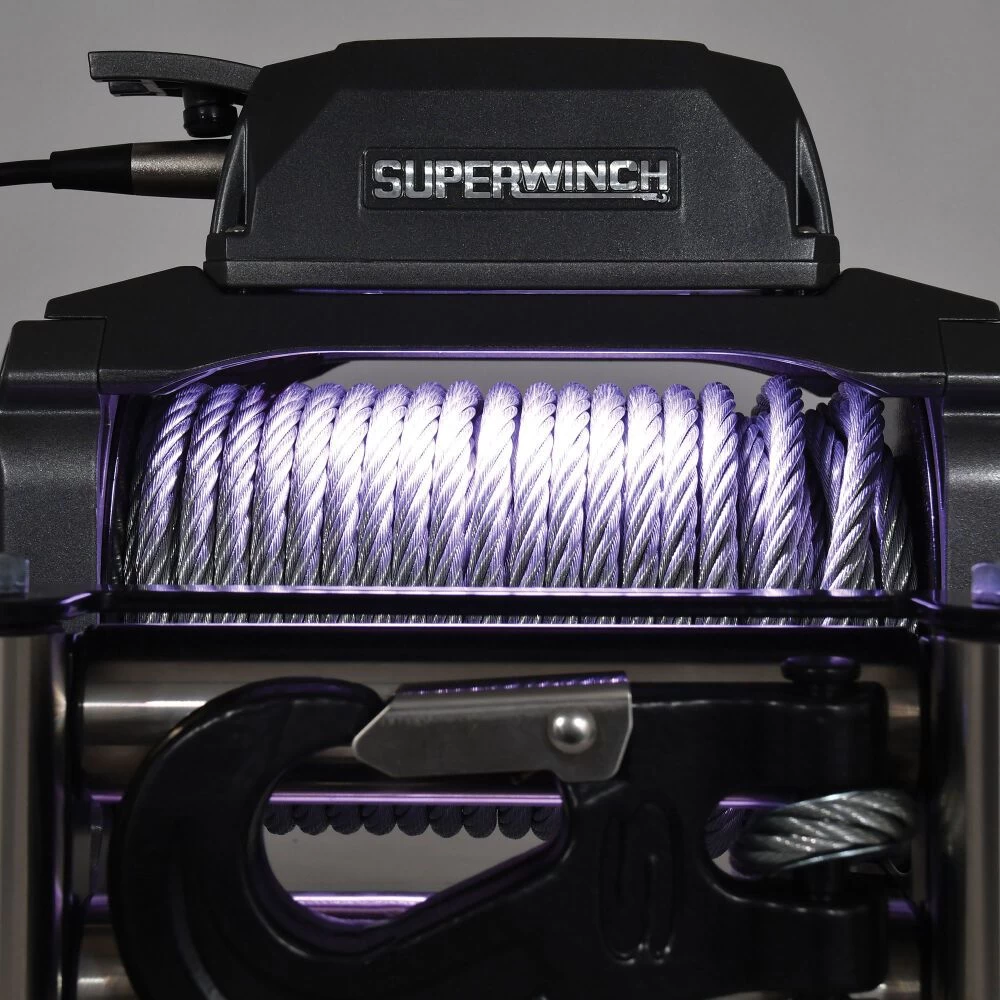

• Patented drumlight
• 3/8 in x 85 ft steel wire rope
• Heavy duty clevis winch hook
• Stainless steel 4-way roller fairlead
• 100% full load holding automatic mechanical brake
• IP68-rated waterproof and dustproof winch

Specifications:

• Brake: Automatic, 100% Load Holding Mechanical
• Clutch: Pull and Turn, Ergonomic Free Spooling
• Dimensions: 22.04in L x 6.3in W x 9.67in H (559.8mm L x 160.02mm W x 245.62mm H)
• Drum Diameter: 2.5in (64mm)
• Drum Length: 8.75in (223mm)
• Fairlead: Heavy Duty Stainless Steel 4-way Roller
• Gear Ratio: 218:1
• Gearing: 3-Stage Planetary
• height: 12
• Hook: Heavy-Duty, Clevis Pinned Latched
• length: 24
• Line Pull, 0 lbs: 85 Amps Motor Draw/27.3 FPM (8.32 MPM) Line Speed
• Line Pull, 10,000 lbs: 363 Amps Motor Draw/4.5 FPM (1.37 MPM) Line Speed
• Motor: Sealed 5.5 HP Series Wound
• Mounting: Bolt Pattern 10in x 4.5in (254mm x 114.3mm)
• Rated Line Pull: 10,000 lbs (4535.9 kg)
• Remote: Sealed Ergonomic Hand-held with 12ft Coiled Cord
• Rope: Steel Wire 3/8in x 85ft (9.5mm x 25.9m)
• Solenoid: Sealed Solenoid, relocatable
• Warranty: Limited Lifetime Mechanical, 7 Year Limited Electrical
• weight: 88
• width: 13
