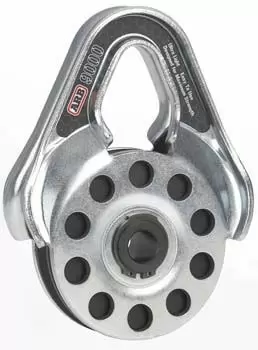

10100020A – ARB Ultra Lite Snatch Block

10100020A – ARB Ultra Lite Snatch Block

ARB snatch blocks feature side plates that sit snug against the pulley, eliminating the possibility of the winch cable becoming trapped between the pulley and the side plates. The groove on the pulley itself tapers down to the center allowing for a variety of cable sizes (1/4″-1/2″) to be used and ensures the cable is seated securely in the pulley, minimizing lateral movement.

Features:

• Works with steel or synthetic winch lines
• Light weight design
• Easy to use
• Doubles the capacity of your winch
• Allows winching from awkward angles
• Engineered tough for serious recovery
• Suits vehicle mounted and portable winches
• Vehicle recovery booklet enclosed

Part Number	10100020A
Working Load	20,000lbs (9000kg)
Breaking Strength	38,500lb (17,500kg)
Side Plate Material	6mm cold rolled steel
Pulley Material	Specialized Polymer
Pulley Diameter	4.3″ (110mm)
Cable Size	0.3″-0.5″ (8mm – 13mm)
Weight	5.3lb (2.4kg)
Greasable	not required
